CPU-Boards

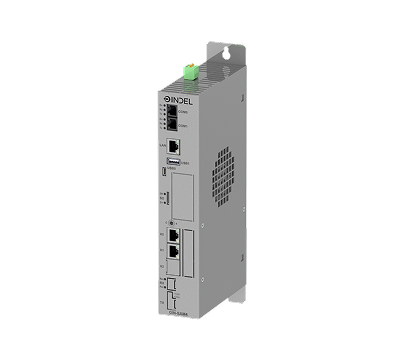

Stand-Alone Masters

GIN-SAM4 is the dedicated controller for high-speed applications with high CPU requirements.

>  read more

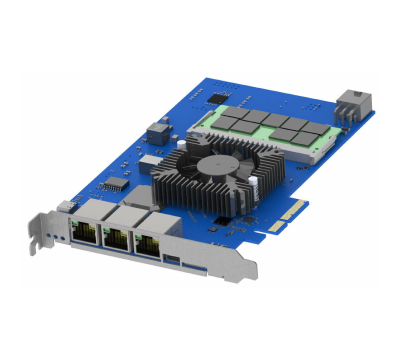

PC Masters

GIN-PCIe5 is a performance CPU board for use as a GinLink fieldbus master in the form of a PCIe plug-in card.

>  read more

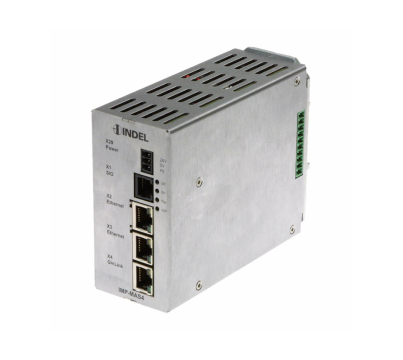

Modular Peripheral Masters

IMP-MAS4 / MAS3 is a universal CPU board for use as a compact controller, GinLink master or slave.

>  read more

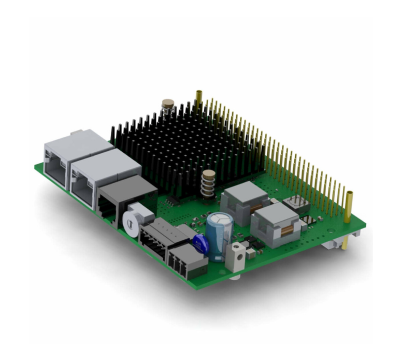

Compact Peripherals Masters

COP-MAS2 is the ideal CPU board for a variety of applications from basic to medium complexity.

>  read more

The CPU board is the central control element of an Indel control system. The CPU board coordinates the axes and I/O systems in real time. All Indel CPU boards run on the INOS real-time operating system, which makes it possible to implement the entire machine application directly on the CPU board. The INOS operating system performs the abstraction of all the hardware and so makes it possible to execute the same application software on any Indel CPU boards.

✓

Scalable CPU-Power

2.2GHz Dual-Core and 2.2GHz Quad-Core

✓

RTOS

Indel-Realtime-OS (INOS)

✓

Flexibility

One operating system for all CPU-Boards

GIN-SAM4
Stand-Alone Masters

2.2 GHz Dual-Core PowerPC QorlQ P50xx CPU
2.2 GHz Quad-Core PowerPC QorlQ P50xx CPU
4 GByte SDRAM, DDR3-1600
64 MByte Flash
2 MByte MRAM
Max. 256 axes on fieldbus
Max. 64 kHz Position-Loop

GIN-PCIe5
PC-Masters

PCIe Gen 3
1.8 GHz Quad-Core ARM Cortex-A72 Processor
4 GByte SDRAM, DDR4-2133
8 MByte Flash
0.5 MByte MRAM
Max. 256 axes on fieldbus

IMP-MAS4
Modular Peripherals Masters

1.2 GHz dual core PowerPC Freescale QorIQ P2020 CPU
1 GByte DDR3-666 (333 MHz), 64 Bit
8 MByte Flash
0.5 MByte NV-RAM
Max. 250 axes on fieldbus

COP-MAS2
Compact Peripherals Masters

800 MHz dual core ARM Cortex A9 CPU /
800 MHz single core ARM Cortex A9 CPU
256 MByte DDR3-800 (400 MHz), 32 Bit
4 MByte Flash
0.5 MByte NV-RAM
Max. 64 axes on fieldbus
