Drives

Multi Servo Drives

The GIN-SAC4 series is the flexible solution for high-end motors from 1 to 4 axes.

> read more

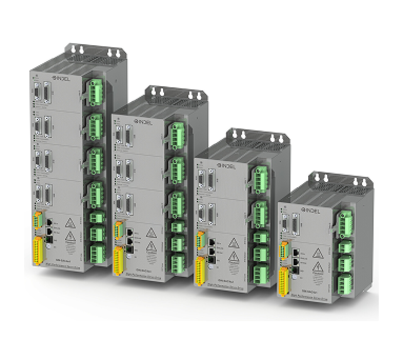

Safety Servo Drives

The GIN-SAC4 series also features integrated functional safety STO, SS1, SS2, SOS and SLS.

> read more

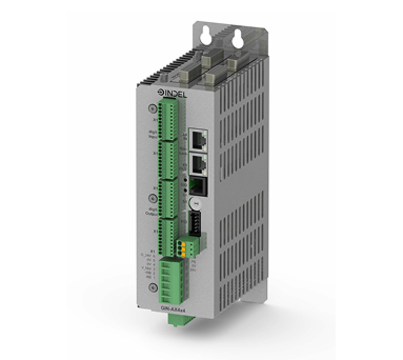

Small Axis Drives

The GIN-AX4x4 Motion Board is a compact solution for controlling up to four axes and 16 digital I/Os.

> read more

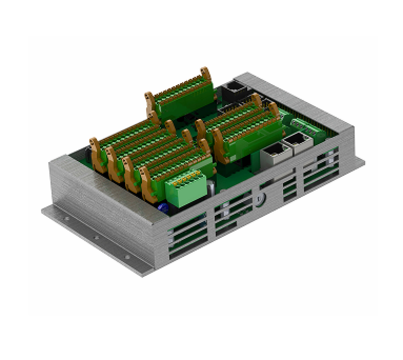

Compact Motion Drives

The compact design of the MAX boards enables space-saving machine designs.

> read more

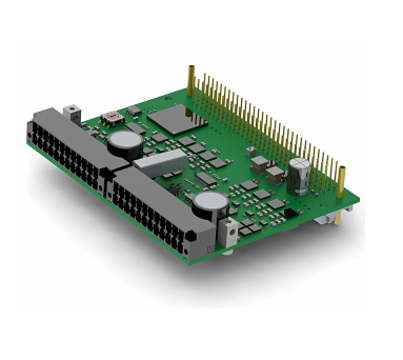

Compact Peripheral Drives

The COP-AX module is a compact solution for the control of 2 axes and up to 8 axes per COP node.

> read more

Indel offers a wide range of servo drives and motion boards to actuate various types of motor in different performance classes. All servo drives and small axis servo drives are also available as PRO versions which are equipped with a dual core CPU and GinLink master functionality. The additional CPU core perimts the implementation of the whole machine control on the drive. All servo drives and small axis servo drives are also available as PRO versions which are equipped with a dual core CPU and GinLink master functionality. The additional CPU core perimts the implementation of the whole machine control on the drive.

✓	Servo drives	110 .. 400 VAC, 1-phase, 3-phases supply
✓	Motion boards	24 .. 48 VDC supply
✓	Motor types	Linear, servo, AC, DC, stepping motors
✓	Feedback	Resolver, SinCos, increment, Endat, Hiperface, SSI
✓	Sample rate	8 .. 32 kHz Positions-Loop

GIN-SAC4 Multi-Servo-Drives	1 - 4 Axes with motor voltage 3x 400V_AC/565V_DC / 1 - 4 Axes with motor voltage 1x 230V_AC/325V_DC 5 A_RMS Motor current per axis in single-mode/ 10 A_RMS Motor current per axis in dual-mode 12 - 32 kHZ Sampling rate 1 - 4 Encoder 1 - 4 SinCos 1 - 4 Resolver 1 - 4 Digitale interfaces
GIN-SAC4 FS Safety Servo Drives	1 - 4 Axes with motor voltage 3x 400V_AC/565V_DC / 1 - 4 Axes with motor voltage 1x 230V_AC/325V_DC 5 A_RMS Motor current per axis in single-mode/ 10 A_RMS Motor current per axis in dual-mode 12 - 32 kHZ Sampling rate 1 - 4 Encoder 1 - 4 SinCos 1 - 4 Resolver 1 - 4 Digitale interfaces STO, SS1, SS2, SOS und SLS (SIL 3, Kategorie 3 PL e)
COP-AX2 Compact Peripheral Drives	1 - 2 Axes with motor voltage 24 .. 72 V_DC / 1 - 8 Axes with motor voltage 24 .. 72 V_DCper COP-node 5 A_RMS Motor current per axis in single-mode/ 10 A_RMS Motor current per axis in dual-mode 32 kHZ Sampling rate 1 - 2 Encoder 1 - 2 SinCos 1 - 2 Digital interfaces
GIN-AX4x4 Small Axis Drives	1 - 4 Axes with motor voltage 24 .. 48 V_DC 5 A_RMS Motor current per axis in single-mode/ 10 A_RMS Motor current per axis in dual-mode 12 - 32 kHZ Sampling rate 4 Encoder 4 SinCos 2 Resolver (with adapter) 1 - 2 Digital interfaces

Encoder for positioning

		GIN-SAC4	GIN-SAC4 FS	COP-AX2	GIN-AX4x4	GIN-MAX4x4
Incremental encoder		✓	✓	✓	✓	✓
Resolver	MLC	✓	✓*	✗	✗	✗
SinCos		✓	✓*	✓	✓	✓
Incremental encoder to SinCos		✓	✓	✓	✓	✓
BiSS-C	MLC	✓	✓	✓	✓	✓
EnDat 2.2	MLC	✓	✓	✓	✓	✓

Absolute encoders

		GIN-SAC4	GIN-SAC4 FS	COP-AX2	GIN-AX4x4	GIN-MAX4x4
SSI	MLC	✓	✓	✓	✓	✓
EnDat	MLC	✓	✓	✓	✓	✓
BiSS-C	MLC	✓	✓	✓	✓	✓
Hiperface	MLC	✓	✓	✓	✓	✓

Legende

MLC	=	Motionless commutation
✓	=	Measuring system available
✓*	=	Measuring system available with safe monitoring for SLS or SOS
✗	=	Measuring system not available
